1. The Heart of Motion Control

Ever wondered how your washing machine knows when to spin and when to gently tumble your delicates? Or how that electric car zooms off so smoothly? Chances are, a motor controller is working diligently behind the scenes. It's like the conductor of an orchestra, but instead of violins and trumpets, it's directing voltage and current to get a motor to do exactly what you want it to do.

At its most basic, a motor controller manages the operation of an electric motor. Think of it as the brain and brawn coordinating to make things move. It doesn't just switch the motor on and off; it governs speed, torque, direction, and even protects the motor from damage. Trying to run a motor without one is like trying to bake a cake without a recipe — you might get something edible, but it's probably not going to be pretty (or work very well).

Motor controllers come in a variety of flavors, from simple on/off switches to sophisticated micro-processor driven devices. They are used in a wide range of applications, everything from industrial robots to household appliances. It could be argued they are the unsung heroes of the modern world!

Without a proper motor controller, you run the risk of overstressing the motor, causing it to overheat, or even damaging the equipment it's connected to. So, when it comes to efficient and safe motor operation, the motor controller is essential.

On/off Electric Motor Control Circuits Discrete System

Key Components

2. Peeking Under the Hood

So what makes these nifty gadgets tick? Well, a typical motor controller incorporates several key components, each playing a vital role in achieving precise motor control. You might even be surprised to learn how many distinct parts it can contain!

First up, we have the power switching devices. These are the workhorses responsible for switching the motor's power supply on and off, or for varying the voltage to control the motor's speed. Think of them as super-efficient light switches. Common examples include transistors, thyristors, and more recently, insulated-gate bipolar transistors (IGBTs).

Next comes the control circuitry. This is the "brain" of the operation. It receives signals from the user (e.g., desired speed, direction) and translates them into instructions for the power switching devices. This could be as simple as a potentiometer (a dial that changes resistance) or as complex as a microcontroller running sophisticated control algorithms.

Don't forget protection circuitry! This safeguards the motor and the controller itself from faults like overcurrent, overvoltage, and overheating. It's the equivalent of having a bodyguard for your motor. It typically includes fuses, circuit breakers, and sensors that monitor the motor's operating conditions.

Circuit Diagram Of Dc Motor Speed Controller

Types of Motor Controllers

3. One Size Doesn't Fit All

Motor controllers aren't a "one-size-fits-all" kind of deal. Just like there are different types of cars for different needs, there are different types of motor controllers tailored to specific applications and motor types. Choosing the right one is crucial for optimal performance and efficiency.

We have your basic On/Off starters, which, as the name suggests, simply start and stop the motor. These are commonly used for simple applications like pumps and fans where speed control isn't required. They're the simplest and most affordable option, but offer limited functionality. Perfect for simple tasks though!

Then there are Reduced Voltage Starters, which reduce the voltage applied to the motor during start-up to limit inrush current and mechanical stress. These are beneficial for larger motors where starting them at full voltage could cause voltage dips in the power supply or damage to the driven equipment.

Variable Frequency Drives (VFDs) are the kings of precise motor control. They allow you to adjust the motor's speed by varying the frequency of the AC power supplied to it. VFDs also offer soft starting and stopping capabilities, as well as energy savings. They are frequently used in applications such as conveyors, pumps, and fans where precise speed control and energy efficiency are paramount.

12v Dc Motor Controller Circuit Diagram

Why Motor Controllers Matter

4. Beyond Just Starting and Stopping

So, why all the fuss about motor controllers? Well, they offer a multitude of benefits beyond simply switching a motor on and off. They're not just a convenience; they're essential for efficient, reliable, and safe motor operation.

First and foremost, motor controllers enhance motor protection. By monitoring current, voltage, and temperature, they can detect and respond to fault conditions, preventing damage to the motor and extending its lifespan. Think of them as preventative medicine for your machinery. That saves money in the long run!

Improved efficiency is another key advantage. VFDs, in particular, can significantly reduce energy consumption by matching the motor's speed to the actual load requirements. Imagine only using the power you need rather than always running at full throttle.

Finally, motor controllers enable precise process control. By allowing you to adjust motor speed and torque, they make it possible to fine-tune industrial processes for optimal performance and product quality. Which means better results for whatever application the motor is being used for!

MAIN TOPIC Basic Motor Control And The Primary Devices

Looking Ahead

5. What's on the Horizon?

The world of motor control is constantly evolving, driven by advancements in technology and the growing demand for greater efficiency, precision, and connectivity. So, what can we expect to see in the future?

Smart motor controllers are becoming increasingly prevalent. These incorporate sophisticated sensors and communication capabilities, allowing them to monitor motor performance in real-time, predict potential failures, and integrate seamlessly with industrial IoT (Internet of Things) platforms. They offer better control than ever before!

Another trend is the increasing adoption of energy-efficient motor control technologies. As energy costs rise and environmental concerns intensify, there's a growing push for motor controllers that minimize energy waste and reduce carbon emissions.

We can also anticipate further integration of motor controllers with advanced automation systems. This will enable more sophisticated control strategies, such as predictive maintenance and adaptive process optimization, leading to increased productivity and reduced downtime.

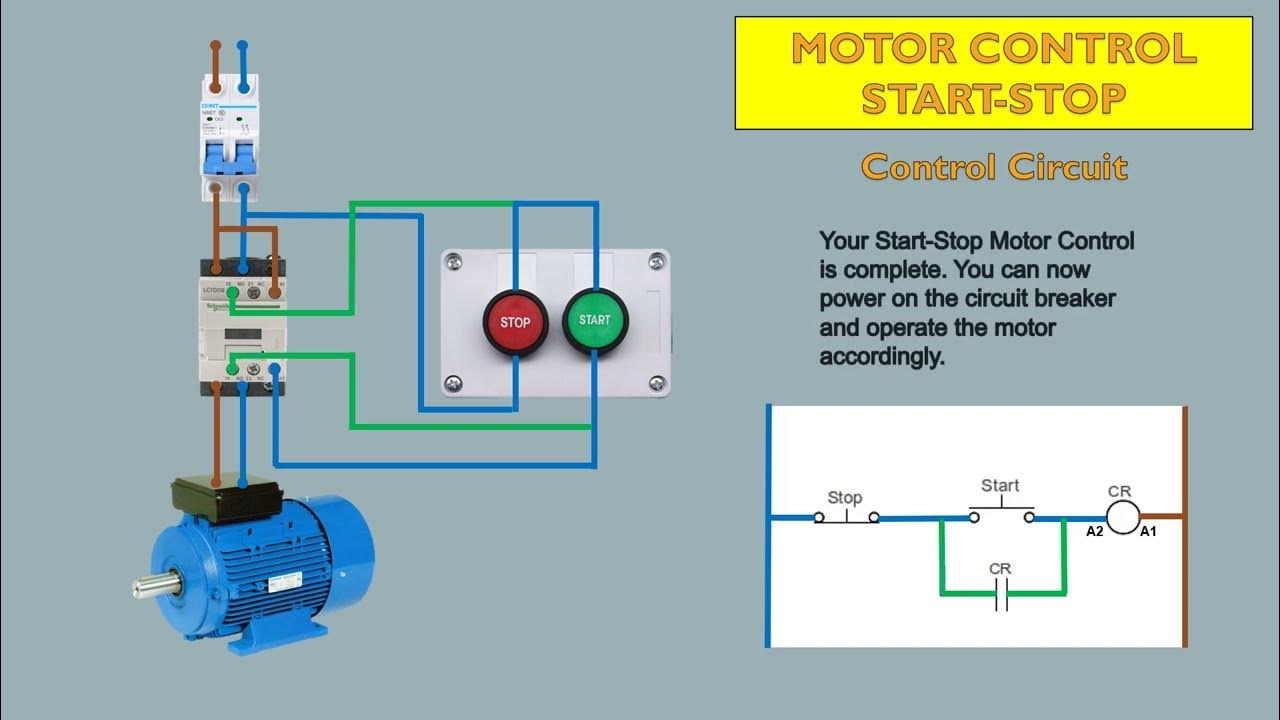

Basic Motor Control Start Stop Circuit YouTube

FAQ

6. Clearing Up the Confusion

Let's address some of the most frequently asked questions about motor controllers.

Q: What happens if I don't use a motor controller?

A: Running a motor without a proper controller can lead to several problems, including overheating, reduced lifespan, and even catastrophic failure. You also lose the ability to precisely control the motor's speed and torque.

Q: Can I use any motor controller with any motor?

A: No, it's crucial to choose a motor controller that's compatible with the type of motor you're using (e.g., AC induction, DC, servo) and that meets its voltage, current, and power requirements. Using an incompatible controller can damage both the motor and the controller.

Q: Are motor controllers difficult to install and maintain?

A: Installation complexity varies depending on the type of controller and the application. Simple starters are relatively easy to install, while more sophisticated VFDs may require specialized knowledge. Regular maintenance, such as checking connections and cleaning, is essential to ensure reliable operation.
